MISUMI Design: Lab Automated Pipetting System

Introducing another MISUMI Original Design – the Lab Automation Dispenser Assembly. MISUMI engineers were challenged by the Medical sales team to design an original Lab Automated Pipetting System using 80% MISUMI components.

The Designers: MISUMI Engineering Team including Anzori, Armando, and José

Assembly Purpose: Dispensing machine that accurately moves the dispensing mechanism to fill tubes in the XYZ axis directions.

Initial Design – Version 1
Final Design

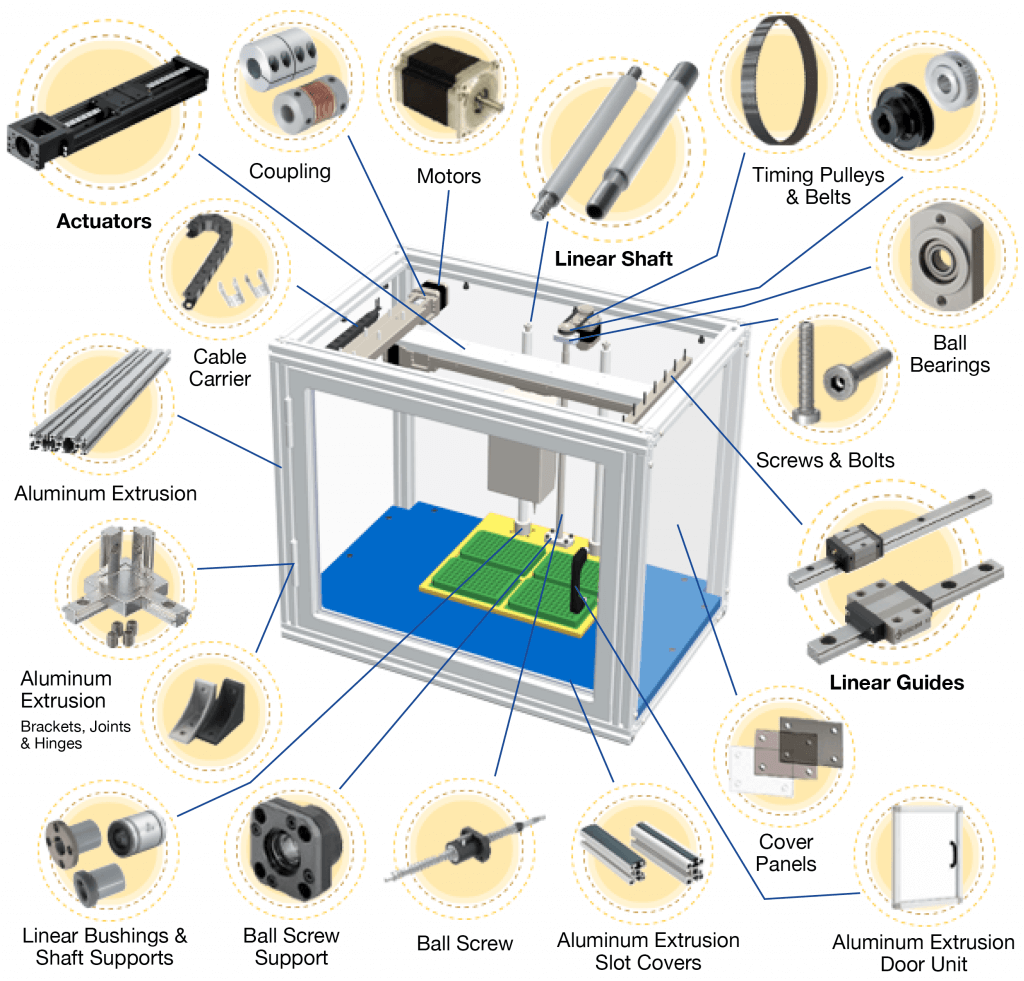

Exploded View of the Inside
SectionSourceProduct CategoryPart NumberTotal
FrameMISUMIAluminum Extrusion (AEX)HFS6-3030-360-LMV-RMV1
FrameMISUMIAluminum Extrusion (AEX)HFS6-3030-360-LTP-RTP4
FrameMISUMIAluminum Extrusion (AEX)HFS6-3030-490-LTP-RTP4
FrameMISUMIAluminum Extrusion (AEX)HFS6-3030-630-X8-AH15-AV15-BH615-BV6154
FrameMISUMIScrews and BoltsFB6-108
FrameMISUMIAEX ScrewHCBM5-824
FrameMISUMIAEX JointsHAMJ62
FrameMISUMIAEX JointsHCJ616
FrameMISUMIAEX Slot CoversHSCGF6-B-6302
FrameMISUMIAEX Slot CoversHSCGF6-B-3602
FrameMISUMIAEX Assembly NutsHNTP6-69
FrameMISUMIAEX Assembly NutsHNTP6-524
FrameMISUMIAEX Assembly NutsHNTP6-68
FrameMISUMICover PanelsPAAL4H-626-416-3-F600-G390-N51
FrameMISUMICover PanelsPAAL4H-626-546-3-F600-G520-N51
FrameMISUMICover PanelsPCTA4H-546-416-3-F520-G320-N52
FrameMISUMIAEX HingesHHPFRN62
FrameMISUMIAEX BracketHBLSS6-SEP6
FrameMISUMIAEX AccessoriesHMEN6-61
FrameMISUMIDoor UnitHTUA6-PC3-563-4861
Z-AxisCustomCustomN/A1
Z-AxisCustomCustomN/A4
Z-AxisMISUMILinear BushingLHMCW162
Z-AxisMISUMIBall ScrewsBSST1204G-4301
Z-AxisMISUMIBall BearingSFL608ZZ1
XYZ-AxisOrientalMotorsPKP244D23A2-R2F3
Z-AxisMISUMIBall Bearing with HousingSBGCA6800DD1
Z-AxisMISUMITiming BeltGBN219MR3-0901
Z-AxisMISUMITiming BeltGPA25MR3060-A-P51
Z-AxisMISUMITiming BeltGPA25MR3060-A-P81
Z-AxisMISUMILinear ShaftPSSFUW16-467-M8-N82
XY-AxisMISUMIActuatorsLX2610-B1-T2642-2501
XY-AxisMISUMIActuatorsLX2610-B1-T2642-4001
XY-AxisCustomCustomN/A1
XY-AxisMISUMIShaft CouplingMCSSC25-5-52
XY-AxisMISUMILinear GuideSEB16-3501
XY-AxisCustomCustomN/A1
X-AxisCustomCustomN/A1
XY-AxisCustomCustomN/A1
XY-AxisMISUMICable CarrierMHPKS101-19-10-S1
PipetteCustomPipetteN/A1
ScrewsMISUMIFastenersCB6-2218
ScrewsMISUMIFastenersCBSST8-304
ScrewsMISUMIFastenersCBSST4-122
ScrewsMISUMIFastenersCBSST3-124
ScrewsMISUMIFastenersCB3-358
ScrewsMISUMIFastenersCB4-104
ScrewsMISUMIFastenersCBSST5-1616
ScrewsMISUMIFastenersCBSST3-108
ScrewsMISUMIFastenersCBSTSR4-144
ScrewsMISUMIFastenersCB3-104
ScrewsMISUMIFastenersCB3-202
ScrewsMISUMIFastenersCB5-128
ScrewsMISUMIFastenersCB4-184
Bill of Materials

CHALLENGE COMPLETE!

Explore MISUMI automation components here.

Needless to say, the engineers had a great time with this challenge.

What have you designed with MISUMI components? Share with us in the comments below!
