In industrial metal forming operations, the die set equipment used for hole punching operations is commonly custom designed for each product and is often incompatible with comparable press operations.
Punch and button die sets are often one-off custom-designed components created for specific machines and operations. For example, punch and button die set A may be a custom-configured set used to perform one dedicated operation on workpiece X.
Designing and fabricating custom punch and button die tooling for each product line is not the most efficient way to plan and deploy manufacturing equipment and capital.
A far better approach is to employ standard punch and die sets for common manufacturing operations and workpiece materials to ensure compatibility between production tooling pieces and forming operations.
Standardizing punch and die equipment involves procuring die sets that meet standard dimensional and quality requirements to ensure that every dimension meets specific tolerances and material specifications. Because all geometric features are the same, standardized parts are interchangeable for their respective press operations.
There are four primary benefits to standardizing punch and button die set tooling.
Key Benefit 1: Improved Consistency and Dimensional Precision
As the production inputs (i.e., die set tooling) are controlled, the output (i.e., final product) realizes the benefits as standardized production tooling equipment contributes to high-quality products.
Standard production tooling produces features with better dimensional accuracy and precision than custom die sets, which are improvised to no specific work standard.
Parts produced by standardized die sets generally contain fewer features that are out of specification, even when produced to tight feature tolerances. This means such parts should have less dimensional variability and help stabilize the production process.
Industry Use Cases
Safety-critical parts, especially high-volume production parts, are regularly produced in industries such as aerospace and defense. These parts require high-precision, stable production processes, so standard production tooling equipment is widely employed in these industries.
Key Benefit 2: Enhanced Cost-Efficiency
Standardized punch and die components also help reduce scrap and part rework costs. Even a modest reduction in defective part quantities can significantly increase manufacturing process efficiency in high-volume production environments.
These efficiency gains increase the manufacturing floor’s overall production efficiency metrics when implemented across multiple product lines.
Standard die sets also reduce capital equipment and total manufacturing overhead costs. For example, ordering production die sets in bulk quantities results in significant capital equipment cost savings.
Furthermore, storing only modest quantities of standard die sets significantly reduces inventory storage costs because fewer specialized tooling sets are required. Lastly, if parts are produced using standard die sets, custom component fabrication costs and long specialized component procurement times can be eliminated.
Key Benefit 3: Simplified Maintenance and Replacement
Standardized, interchangeable punch and button die components make maintenance and replacement operations more manageable. If a die or punch breaks, it can simply be replaced with an existing available part in inventory or on another machine.
There is no longer any need to reverse engineer the geometry of the custom broken part that requires replacement.
Standard components also codify the preventative maintenance and inspection schedules and intervals, as each standard die set can undergo the same maintenance procedures within the same timeframe. Standardized die sets also homogenize tooling troubleshooting procedures.
Key Benefit 4: Faster Design and Prototyping Processes
Decreasing the total design and prototyping turnaround time is a considerable benefit of using standardized set equipment.
Standard die sets can be integrated into the earliest production equipment design stages. CAD models of standardized parts can be used to plan the tooling configuration, and engineers can bring the CAD models into CAM software and use them to generate the CNC instructions for the press. This critical functionality allows engineers to diagnose and fix tooling fit and function before installing it on the press.
They can also swap components to verify performance and function while designing new production equipment configurations. This significantly reduces the total design time required to produce prototypes in limited production runs and accelerates the total product development time to bring the parts to high-volume production as quickly as possible.
Shop Punch and Die Components

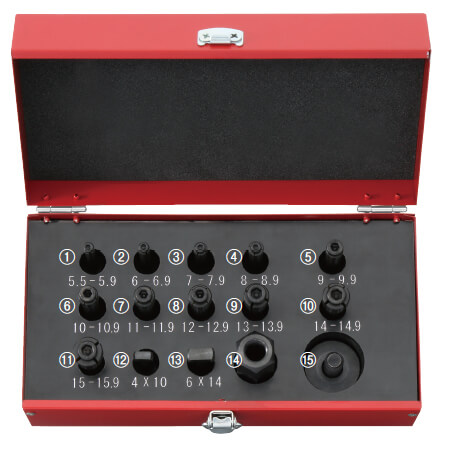

Manufacturers can achieve cost savings, better quality control, and a more stable production process by implementing standardized punch and button die set tooling. Check out our wide range of punch and die components, as well as MISUMI’s button die extracting tools.
Understanding MISUMI Standard Part Numbers
Standard part numbers are established based on specifications and dimensions. For example, a shoulder punch part number would include type, length, and tip shape:
